> 渦輪減速機 |
 |

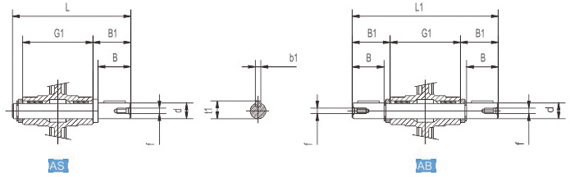

附件 單 (AS) / 雙出軸 (AB)
|
|
| |
d |
B |
B1 |
G1 |
L |
L1 |
f |
b1 |
t1 |
| 025 |
11g6
(g) |
23
(25) |
25.5
(30) |
50 |
80
(85.5) |
101 |
- |
4(3) |
12.5
(10.2) |
| 030 |
14g6 |
30 |
32.5 |
63 |
102 |
128 |
M6 |
5 |
16 |
| 040 |
18h6 |
40 |
43 |
78 |
128 |
164 |
M6 |
6 |
20.5 |
| 050 |
25h6 |
50 |
43.5 |
92 |
153 |
199 |
M10 |
8 |
28 |
| 063 |
25h6 |
50 |
43.5 |
112 |
173 |
219 |
M10 |
8 |
28 |
| 075 |
28h6 |
60 |
63.5 |
120 |
192 |
247 |
M10 |
8 |
31 |
| 090 |
35h6 |
80 |
84.5 |
140 |
234 |
309 |
M12 |
10 |
38 |
| 110 |
42h6 |
80 |
84.5 |
155 |
249 |
324 |
M16 |
12 |
45 |
| 130 |
45h6 |
80 |
85 |
170 |
265 |
340 |
M16 |
14 |
48.5 |
|
| |
保護罩 |
 |
| |
N2 |
| 030 |
42 |
| 040 |
50 |
| 050 |
58 |
| 063 |
69 |
| 075 |
74 |
| 090 |
86 |
| 110 |
94 |
| 130 |
102 |
|
|
|
|
